- 产品型号：16465049
- 频率：32.768KHz
- 尺寸：8.0x3.8mm
- 产品介绍：电脑主板晶振,CTP3-32.768-12.5-20-R,AKER安碁时钟晶振,8038mm晶振,游戏机晶振，AKER晶振，安碁晶振，型号：CTP3系列晶振，编码为：CTP3-32.768-12.5-20-R，频率为...
-
电脑主板晶振,CTP3-32.768-12.5-20-R,AKER安碁时钟晶振
.jpg)
.jpg)
电脑主板晶振,CTP3-32.768-12.5-20-R,AKER安碁时钟晶振,8038mm晶振,游戏机晶振，AKER晶振，安碁晶振，型号：CTP3系列晶振，编码为：CTP3-32.768-12.5-20-R，频率为：32.768KHz，小体积晶振尺寸：8.0x3.8mm，四脚贴片晶振，石英晶振，无源晶振，SMD晶振，音叉晶体，石英晶体谐振器，无铅晶振，12.5pF标准负载电容，±20PPM频率公差，-10至+60°C温度范围。具有超小型，轻薄型，高精度，高性能，高品质，耐热及耐环境特点。应用于：通讯设备，钟表晶振，无线模块，蓝牙模块，物联网，智能手机，电脑主板，游戏机设备，电话机，时钟晶振，智能家居，仪器仪表设备等应用。
.jpg)

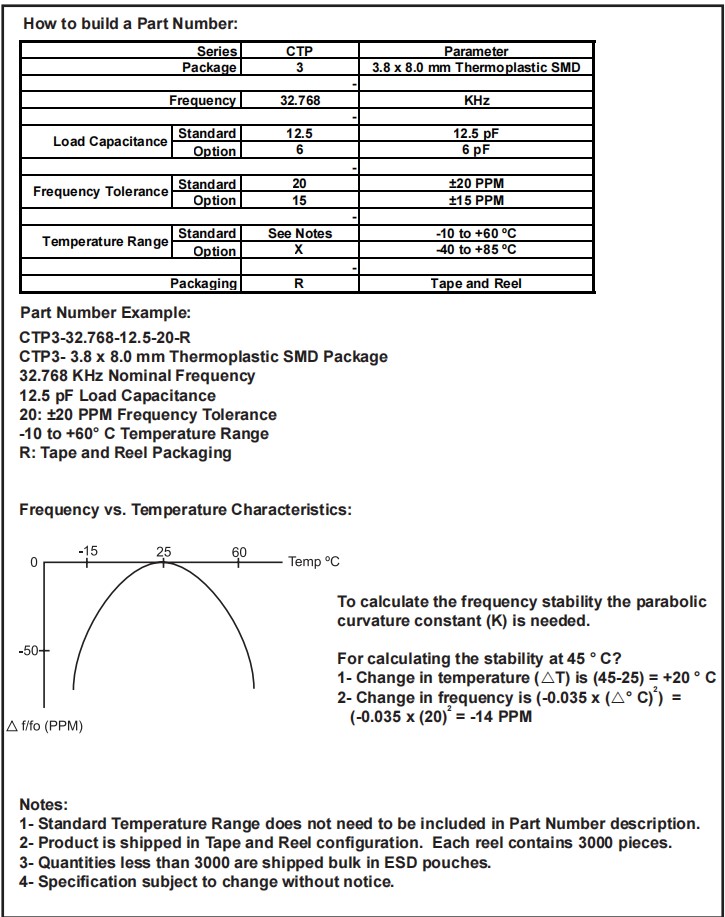

电脑主板晶振,CTP3-32.768-12.5-20-R,AKER安碁时钟晶振,8038mm晶振,游戏机晶振,参数表
| Nominal Frequency | 32.768 | KHz | |||||||||||||||||||||||
| Frequency Tolerance at 25º C | Standard | ±20 | PPM | ||||||||||||||||||||||
| Optional | ±15 | ||||||||||||||||||||||||
| Aging | ±3 (first year) | ||||||||||||||||||||||||
| Turnover Temperature | 25 ±5 | º C | |||||||||||||||||||||||
| Temperature Coefficient | -0.035 ± 0.008 PPM/Δ ºC² | ||||||||||||||||||||||||
| Temperature Range (Operating) | Standard | -10 to +60 | |||||||||||||||||||||||
| Optional | -40 to +85 | ||||||||||||||||||||||||
| Temperature Range (Storage) | -55 to +125 | ||||||||||||||||||||||||
| Equivalent Series Resistance | 50 | K Ohm Max | |||||||||||||||||||||||
| Load Capacitance | Standard | 12.5 | pF | ||||||||||||||||||||||
| Optional | 6.0 | ||||||||||||||||||||||||
| Shunt Capacitance | 1.5 | pF Typ | |||||||||||||||||||||||
| Motional Capacitance | 3.0 | fF Typ | |||||||||||||||||||||||
| Drive Level | 1.0 | uW Max | |||||||||||||||||||||||
| Insulation Resistance | 500 at at 100 Vdc ± 15 Vdc | M Ohm Min | |||||||||||||||||||||||
| Quality Factor | 70000 | Typ | |||||||||||||||||||||||
| Capacitance Ratio | 450 | ||||||||||||||||||||||||
| Resistance to Shock |
±5 PPM maximum offset from 75 cm drop test in all axes on to a hard surface. |
- | |||||||||||||||||||||||
.jpg)
电脑主板晶振,CTP3-32.768-12.5-20-R,AKER安碁时钟晶振,8038mm晶振,游戏机晶振,尺寸图
| 产品编码 | 晶振厂家 | 描述 | 系列 | 频率 |
| C3E-16.000-18-3030-X-R | Aker安碁 | CRYSTAL 16.0000MHZ 18PF SMD | C3E | 16 MHz |
| C3E-20.000-12-3030-X-R | Aker安碁 | CRYSTAL 20.0000MHZ 12PF SMD | C3E | 20 MHz |
| C3E-16.000-12-3030-R | Aker安碁 | CRYSTAL 16.0000MHZ 12PF SMD | C3E | 16 MHz |
| C3E-25.000-18-3030-R | Aker安碁 | CRYSTAL 25.0000MHZ 18PF SMD | C3E | 25 MHz |
| C3E-12.000-18-3030-R | Aker安碁 | CRYSTAL 12.0000MHZ 18PF SMD | C3E | 12 MHz |
| C3E-25.000-18-2030-R | Aker安碁 | CRYSTAL 25.0000MHZ 18PF SMD | C3E | 25 MHz |
| C3E-12.000-8-3030-R | Aker安碁 | CRYSTAL 12.0000MHZ 8PF SMD | C3E | 12 MHz |
| C3E-25.000-8-1010-R | Aker安碁 | CRYSTAL 25.0000MHZ 8PF SMD | C3E | 25 MHz |
| C3E-25.000-8-1520-R | Aker安碁 | CRYSTAL 25.0000MHZ 8PF SMD | C3E | 25 MHz |
| C3E-16.000-12-3030-X-R | Aker安碁 | CRYSTAL 16.0000MHZ 12PF SMD | C3E | 16 MHz |
| C3E-32.000-10-1010-R | Aker安碁 | CRYSTAL 32.0000MHZ 10PF SMD | C3E | 32 MHz |
| C3E-12.000-8-1520-R | Aker安碁 | CRYSTAL 12.0000MHZ 8PF SMD | C3E | 12 MHz |
| C3E-32.000-12-1010-R | Aker安碁 | CRYSTAL 32.0000MHZ 12PF SMD | C3E | 32 MHz |
| C3E-25.000-8-1015-R | Aker安碁 | CRYSTAL 25.0000MHZ 8PF SMD | C3E | 25 MHz |
| C3E-12.000-18-3030-X-R | Aker安碁 | CRYSTAL 12.0000MHZ 18PF SMD | C3E | 12 MHz |
| C3E-25.000-12-3030-X-R | Aker安碁 | CRYSTAL 25.0000MHZ 12PF SMD | C3E | 25 MHz |
| C3E-25.000-10-3030-X-R | Aker安碁 | CRYSTAL 25.0000MHZ 10PF SMD | C3E | 25 MHz |
| C3E-24.000-8-1015-R | Aker安碁 | CRYSTAL 24.0000MHZ 8PF SMD | C3E | 24 MHz |
| C3E-24.000-10-1010-R | Aker安碁 | CRYSTAL 24.0000MHZ 10PF SMD | C3E | 24 MHz |
| C3E-32.000-12-1530-X-R | Aker安碁 | CRYSTAL 32.0000MHZ 12PF SMD | C3E | 32 MHz |
| C3E-12.000-8-1010-R | Aker安碁 | CRYSTAL 12.0000MHZ 8PF SMD | C3E | 12 MHz |
| C3E-16.000-8-1015-R | Aker安碁 | CRYSTAL 16.0000MHZ 8PF SMD | C3E | 16 MHz |
| C3E-32.000-10-1015-R | 贴片晶振 | CRYSTAL 32.0000MHZ 10PF SMD | C3E | 32 MHz |
| C3E-24.000-12-1530-X-R | Aker安碁 | CRYSTAL 24.0000MHZ 12PF SMD | C3E | 24 MHz |
| C3E-24.000-12-3030-X-R | Aker安碁 | CRYSTAL 24.0000MHZ 12PF SMD | C3E | 24 MHz |
| C3E-24.000-18-1010-R | Aker安碁 | CRYSTAL 24.0000MHZ 18PF SMD | C3E | 24 MHz |
| C3E-20.000-10-1530-X-R | Aker安碁 | CRYSTAL 20.0000MHZ 10PF SMD | C3E | 20 MHz |
| C3E-25.000-8-1530-X-R | Aker安碁 | CRYSTAL 25.0000MHZ 8PF SMD | C3E | 25 MHz |
| C3E-24.000-12-1015-X-R | Aker安碁 | CRYSTAL 24.0000MHZ 12PF SMD | C3E | 24 MHz |
| C3E-24.000-10-1015-X-R | Aker安碁 | CRYSTAL 24.0000MHZ 10PF SMD | C3E | 24 MHz |
| C3E-16.000-12-1015-X-R | Aker安碁 | CRYSTAL 16.0000MHZ 12PF SMD | C3E | 16 MHz |
| C3E-40.000-10-1015-X-R | Aker安碁 | CRYSTAL 40.0000MHZ 10PF SMD | C3E | 40 MHz |
| C3E-32.000-8-1015-X-R | Aker安碁 | CRYSTAL 32.0000MHZ 8PF SMD | C3E | 32 MHz |
| C3E-32.000-10-1015-X-R | Aker安碁 | CRYSTAL 32.0000MHZ 10PF SMD | C3E | 32 MHz |
| C3E-32.000-12-1015-X-R | Aker安碁 | CRYSTAL 32.0000MHZ 12PF SMD | C3E | 32 MHz |
| C3E-8.000-10-3030-R | Aker安碁 | CRYSTAL 8.0000MHZ 10PF SMD | C3E | 8 MHz |
| C3E-8.000-10-3030-X-R | Aker安碁 | CRYSTAL 8.0000MHZ 10PF SMD | C3E | 8 MHz |
| C3E-8.000-18-3030-X-R | Aker安碁 | CRYSTAL 8.0000MHZ 18PF SMD | C3E | 8 MHz |
| C3E-8.000-18-3030-R | Aker安碁 | CRYSTAL 8.0000MHZ 18PF SMD | C3E | 8 MHz |
| C3E-16.000-12-1015-X-M | Aker安碁 | CRYSTAL 16.0000MHZ 12PF SMD | C3E | 16 MHz |
| C5S-26.000-16-1010-R | Aker安碁 | CRYSTAL 26.0000MHZ 16PF SMD | C5S | 26 MHz |
| C5S-8.000-18-3030-R | Aker安碁 | CRYSTAL 8.0000MHZ 18PF SMD | C5S | 8 MHz |
| C3E-24.000-9-1010-R | Aker安碁 | CRYSTAL 24MHZ 9PF SMD | C3E | 24 MHz |
| C3E-12.000-12-1020-X-R | Aker安碁 | CRYSTAL 12MHZ 12PF SMD | C3E | 12 MHz |
| C3E-12.000-18-1020-X-R | Aker安碁 | CRYSTAL 12MHZ 18PF SMD | C3E | 12 MHz |
| C3E-25.000-20-1015-X-R | Aker安碁 | CRYSTAL 25MHZ 20PF SMD | C3E | 25 MHz |
| C3E-24.000-9-1015-X-R | Aker安碁 | CRYSTAL 24MHZ 9PF SMD | C3E | 24 MHz |
| C3E-16.000-9-1015-X-R | Aker安碁 | CRYSTAL 16MHZ 9PF SMD | C3E | 16 MHz |
| C3E-8.000-20-1020-R | Aker安碁 | CRYSTAL 8.0000MHZ 12PF SMD | C3E | 8 MHz |
| C3E-8.000-18-1020-X-R | Aker安碁 | CRYSTAL 8MHZ 18PF SMD | C3E | 8 MHz |
| C3E-8.000-8-1015-R | Aker安碁 | CRYSTAL 8MHZ 8PF SMD | C3E | 8 MHz |
| C3E-12.000-8-2050-X1-R | Aker安碁 | CRYSTAL 12MHZ 8PF SMD AEC-Q200 | C3E X1 | 12 MHz |
| C3E-16.000-10-3050-X1-R | Aker安碁 | CRYSTAL 16MHZ 10PF SMD AEC-Q200 | C3E X1 | 16 MHz |
| C3E-20.000-8-3050-X1-R | Aker安碁 | CRYSTAL 20MHZ 8PF SMD AEC-Q200 | C3E X1 | 20 MHz |
| C5S-12.000-18-1020-R | Aker安碁 | CRYSTAL 12.0000MHZ 18PF SMD | C5S | 12 MHz |
| C3E-8.000-18-1020-R | Aker安碁 | CRYSTAL 8.0000MHZ 18PF SMD | C3E | 8 MHz |
| C3E-8.000-12-1020-M | Aker安碁 | CRYSTAL 8MHZ 12PF SMD | C3E | 8 MHz |
| C3E-16.000-10-2050-X1-R | Aker安碁 | CRYSTAL 10MHZ 10PF SMD AEC-Q200 | C3E X1 | 10 MHz |
| C3E-30.000-8-2050-X1-R | Aker安碁 | CRYSTAL 30MHZ 8PF SMD AEC-Q200 | C3E X1 | 30 MHz |
| C7S-12.000-12-3030-X-R | Aker安碁 | CRYSTAL 12MHZ 12PF SMD | C7S | 12 MHz |
| C7S-8.000-18-1020-R | Aker安碁 | CRYSTAL 8.0000MHZ 18PF SMD | C7S | 8 MHz |
| C7S-8.000-18-1030-X-R | Aker安碁 | CRYSTAL 8MHZ 18PF SMD | C7S | 8 MHz |
| C3E-8.000-10-1020-M | Aker安碁 | CRYSTAL 8MHZ 10PF SMD | C3E | 8 MHz |
| C3E-24.576-12-3030-X-R | Aker安碁 | CRYSTAL 24.5760MHZ 12PF SMD | C3E | 24.576 MHz |
| C3E-30.000-12-1020-X-R | Aker安碁 | CRYSTAL 30MHZ 12PF SMD | C3E | 30 MHz |
| C3E-12.000-12-1015-R | Aker安碁 | CRYSTAL 12.0000MHZ 12PF SMD | C3E | 12 MHz |
| C3E-25.000-8-1015-X-R | Aker安碁 | CRYSTAL 25.0000MHZ 8PF SMD | C3E | 25 MHz |
| C3E-26.000-10-1015-X-R3 | Aker安碁 | CRYSTAL 26.0000MHZ 10PF SMD | C3E | 26 MHz |
| C3E-16.000-8-2050-X1-R | Aker安碁 | CRYSTAL 16MHZ 8PF SMD AEC-Q200 | C3E X1 | 16 MHz |
| C3E-8.000-12-1020-R | Aker安碁 | CRYSTAL 8.0000MHZ 12PF SMD | C3E | 8 MHz |
| C3E-12.000-12-3030-X-R | Aker安碁 | CRYSTAL 12.0000MHZ 12PF SMD | C3E | 12 MHz |
| C3E-27.120-12-1010-R | Aker安碁 | CRYSTAL 27.1200MHZ 12PF SMD | C3E | 27.12 MHz |
| C3E-24.576-12-1010-R | Aker安碁 | CRYSTAL 24.5760MHZ 12PF SMD | C3E | 24.576 MHz |
| C3E-16.000-12-1015-R | Aker安碁 | CRYSTAL 16.0000MHZ 12PF SMD | C3E | 16 MHz |
| C3E-13.560-12-1530-X-R | Aker安碁 | CRYSTAL 13.5600MHZ 12PF SMD | C3E | 13.56 MHz |
| C3E-20.000-10-3050-X1-R | Aker安碁 | CRYSTAL 20MHZ 10PF SMD AEC-Q200 | C3E X1 | 20 MHz |
| C3E-27.120-12-1020-X-R | Aker安碁 | CRYSTAL 27.120MHZ 12PF SMD | C3E | 27.12 MHz |
| C3E-16.000-9-1010-R | Aker安碁 | CRYSTAL 16MHZ 9PF SMD | C3E | 16 MHz |
| C5S-24.000-20-3030-X-R | Aker安碁 | CRYSTAL 24MHZ 20PF SMD | C5S | 24 MHz |
| C5S-12.000-16-5050-X-R | Aker安碁 | CRYSTAL 12MHZ 16PF SMD | C5S | 12 MHz |
| C5S-20.000-20-3050-X-R | Aker安碁 | CRYSTAL 20MHZ 20PF SMD | C5S | 20 MHz |
| C5S-12.000-16-3030-X-R | Aker安碁 | CRYSTAL 12.0000MHZ 16PF SMD | C5S | 12 MHz |
| C5S-8.000-12-2020-X-R | Aker安碁 | CRYSTAL 8MHZ 12PF SMD | C5S | 8 MHz |
| C6S-16.000-12-5050-X-R | Aker安碁 | CRYSTAL 16MHZ 12PF SMD | C6S | 16 MHz |
| C5S-8.000-18-3030-X-R | Aker安碁 | CRYSTAL 8.0000MHZ 18PF SMD | C5S | 8 MHz |
| C5S-8.000-16-3030-X-R | Aker安碁 | CRYSTAL 8.0000MHZ 16PF SMD | C5S | 8 MHz |
| C3E-16.000-8-50100-X1-R | Aker安碁 | CRYSTAL 16.0000MHZ 8PF SMD | C3E | 16 MHz |
| C3E-16.000-8-50150-A-X3-R | Aker安碁 | UWB CRYSTAL, 3225, 16.000MHZ, 8P | C3E Auto | 16 MHz |
| C3E-8.000-8-10150-A-X3-R | Aker安碁 | UWB CRYSTAL, 3225, 8.000MHZ, 8PF | C3E Auto | 8 MHz |
| C3E-16.000-8-10150-A-X3-R | Aker安碁 | CRYSTAL, 3225, 16.000MHZ, 8PF, S | C3E Auto | 16 MHz |
| C3E-24.000-12-1050-A-X1-R | Aker安碁 | CRYSTAL, 3225, 24.000MHZ, 12PF, | C3E Auto | 24 MHz |
| C3E-8.000-8-1080-A-X1-R | Aker安碁 | CRYSTAL, 3225, 8.000MHZ, 8PF, SM | C3E Auto | 8 MHz |
| C3E-16.000-12-2050-A-X1-R | Aker安碁 | CRYSTAL, 3225, 16.000MHZ, 12PF, | C3E Auto | 16 MHz |
| C5S-24.000-18-20100-A-X1-R | Aker安碁 | CRYSTAL, 5032 ,24.000MHZ, 18PF, | C5S Auto | - |
