首页进口晶振爱普生晶振MPU时钟专用晶振FA-238,Q22FA23800001,3225mm,12pF,20MHz,±50ppm

MPU时钟专用晶振FA-238,Q22FA23800001,3225mm,12pF,20MHz,±50ppm

产品型号：16230938
频率：16MHz~50MHz
尺寸：3.2x2.5mm
产品介绍：MPU时钟专用晶振FA-238,Q22FA23800001,3225mm,12pF,20MHz,50ppm，日本EPSON爱普生株式会社，进口晶振FA-238，产品编码：Q22FA23800001，产品型号：FA-238V20.0000...

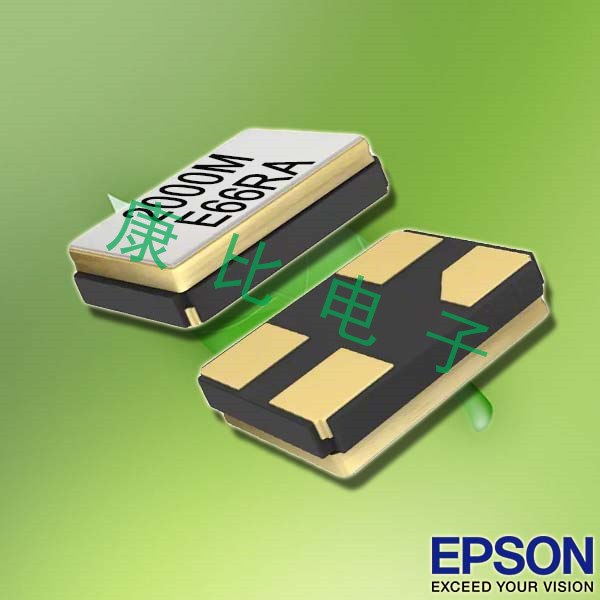

MPU时钟专用晶振FA-238,Q22FA23800001,3225mm,12pF,20MHz,±50ppm，日本EPSON爱普生株式会社，进口晶振FA-238，产品编码：Q22FA23800001，产品型号：FA-238V 20.000000MHz 12.0 ±15.0，是一款小体积晶振尺寸3.2x2.5x0.7mm四脚贴片晶振，Q22FA23800022无源晶振，石英晶振，Q22FA23800063石英晶体谐振器，无铅环保晶振，频率为20MHz，工作温度范围：-40 °C to +85 °C (+105 °C)，具有超小型，轻薄型，高品质，高质量，耐热及耐环境特点，应用于智能手机，蓝牙?？?，无线网络，ISM频带收音机，MPU时钟，车载控制器，汽车音响，汽车电子控制板，医疗设备，平板电脑，数码电子等应用。

MPU时钟专用晶振FA-238,Q22FA23800001,3225mm,12pF,20MHz,±50ppm，参数图

Item	Symbol	For Clock		For RF Reference
		FA-238V	FA-238	TSX-3225
Nominal frequency range	f_nom	12 MHz to 15.999 MHz	16 MHz to 50 MHz	16 MHz to 48 MHz
Storage temperature	T_stg	-40 °C to +125 °C
Operating temperature	T_use	-40 °C to +85 °C (+105 °C)
Level of drive	DL	200 µW Max.
Frequency tolerance	f_tol	±50 × 10-6 (standard),		±10 × 10-6
		(±15 × 10-6 to ±50 × 10-6 is available)
Frequency versus temperature characteristics	f_tem	±30 × 10-6/-20 °C to +70 °C		±10 × 10-6/-20 °C to +75 °C
Load capacitance	CL	7 pF to ∞
Motional resistance (ESR)	R1	As per table below		As per table below
Frequency aging	f_age	±5 × 10-6 / year Max.		±1 × 10-6 / year Max.*2

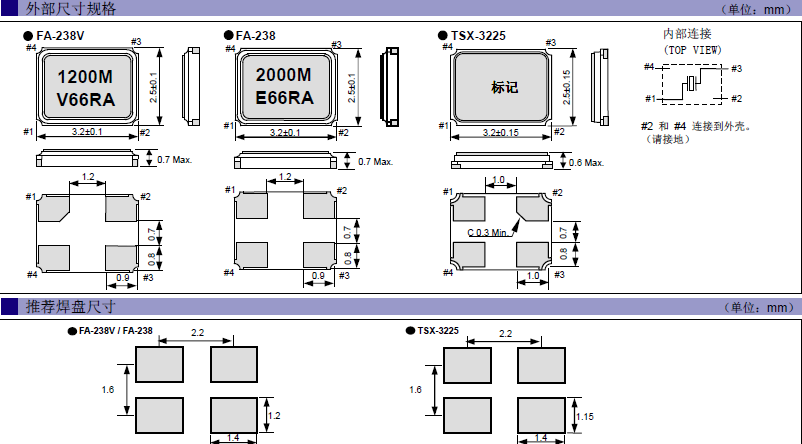

MPU时钟专用晶振FA-238,Q22FA23800001,3225mm,12pF,20MHz,±50ppm，尺寸图

MPU时钟专用晶振FA-238,Q22FA23800001,3225mm,12pF,20MHz,±50ppm
产品名称 FA-238V 12.000000MHz 12.0 ±15.0
（标准形式）① ② ③ ④
①型号
②频率
③负载电容（pF）
④频率容差（×10-6，+25°C）
高质量工作，为了提供高质量和可靠的产品和服务，满足客户需求，精工爱普生早期努力获得ISO9000系列认证，并为日本和国外所有商业机构的ISO9001。我们还获得了IATF 16949认证。

康比电子	尺寸	型号	频率	负载	频率 @+25°C
Q22FA23800001	3.2 x 2.5 x 0.7mm	FA-238	20.000000 MHz	12 pF	+/-50 ppm
Q22FA23800002	3.2 x 2.5 x 0.7mm	FA-238	20.000000 MHz	18 pF	+/-50 ppm
Q22FA23800011	3.2 x 2.5 x 0.7mm	FA-238	16.934400 MHz	10 pF	+/-50 ppm
Q22FA23800013	3.2 x 2.5 x 0.7mm	FA-238	25.000000 MHz	10 pF	+/-50 ppm
Q22FA23800022	3.2 x 2.5 x 0.7mm	FA-238	27.000000 MHz	12 pF	+/-50 ppm
Q22FA23800028	3.2 x 2.5 x 0.7mm	FA-238	27.000000 MHz	18 pF	+/-50 ppm
Q22FA23800035	3.2 x 2.5 x 0.7mm	FA-238	20.000000 MHz	12 pF	+/-30 ppm
Q22FA23800041	3.2 x 2.5 x 0.7mm	FA-238	24.000000 MHz	20 pF	+/-50 ppm
Q22FA23800044	3.2 x 2.5 x 0.7mm	FA-238	24.000000 MHz	7 pF	+/-50 ppm
Q22FA23800047	3.2 x 2.5 x 0.7mm	FA-238	16.000000 MHz	7 pF	+/-50 ppm
Q22FA23800048	3.2 x 2.5 x 0.7mm	FA-238	49.152000 MHz	12 pF	+/-50 ppm
Q22FA23800063	3.2 x 2.5 x 0.7mm	FA-238	24.576000 MHz	12 pF	+/-50 ppm
Q22FA23800065	3.2 x 2.5 x 0.7mm	FA-238	24.000000 MHz	12 pF	+/-50 ppm
Q22FA23800075	3.2 x 2.5 x 0.7mm	FA-238	50.000000 MHz	12 pF	+/-50 ppm
Q22FA23800076	3.2 x 2.5 x 0.7mm	FA-238	48.000000 MHz	10 pF	+/-50 ppm
Q22FA23800078	3.2 x 2.5 x 0.7mm	FA-238贴片晶振	48.000000 MHz	18 pF	+/-50 ppm
Q22FA23800079	3.2 x 2.5 x 0.7mm	FA-238	27.000000 MHz	10 pF	+/-50 ppm
Q22FA23800085	3.2 x 2.5 x 0.7mm	FA-238	48.000000 MHz	12 pF	+/-50 ppm
Q22FA23800088	3.2 x 2.5 x 0.7mm	FA-238	24.576000 MHz	12 pF	+/-30 ppm
Q22FA23800089	3.2 x 2.5 x 0.7mm	FA-238	24.000000 MHz	16 pF	+/-50 ppm
Q22FA23800091	3.2 x 2.5 x 0.7mm	FA-238	18.432000 MHz	20 pF	+/-50 ppm
Q22FA23800092	3.2 x 2.5 x 0.7mm	FA-238	25.000000 MHz	20 pF	+/-50 ppm
Q22FA23800093	3.2 x 2.5 x 0.7mm	FA-238	18.432000 MHz	12 pF	+/-50 ppm
Q22FA23800095	3.2 x 2.5 x 0.7mm	FA-238	25.000000 MHz	12 pF	+/-50 ppm
Q22FA23800098	3.2 x 2.5 x 0.7mm	FA-238	30.000000 MHz	10 pF	+/-50 ppm
Q22FA23800103	3.2 x 2.5 x 0.7mm	FA-238	27.000000 MHz	16 pF	+/-50 ppm
Q22FA23800114	3.2 x 2.5 x 0.7mm	FA-238	24.000000 MHz	18 pF	+/-50 ppm
Q22FA23800120	3.2 x 2.5 x 0.7mm	FA-238	24.576000 MHz	18 pF	+/-50 ppm
Q22FA23800127	3.2 x 2.5 x 0.7mm	FA-238	18.432000 MHz	16 pF	+/-50 ppm
Q22FA23800128	3.2 x 2.5 x 0.7mm	FA-238	18.432000 MHz	18 pF	+/-50 ppm
Q22FA23800129	3.2 x 2.5 x 0.7mm	FA-238	22.579200 MHz	10 pF	+/-50 ppm
Q22FA23800133	3.2 x 2.5 x 0.7mm	FA-238	16.000000 MHz	12 pF	+/-50 ppm
Q22FA23800137	3.2 x 2.5 x 0.7mm	FA-238	40.000000 MHz	18 pF	+/-50 ppm
Q22FA23800138	3.2 x 2.5 x 0.7mm	FA-238	27.000000 MHz	8 pF	+/-50 ppm
Q22FA23800140	3.2 x 2.5 x 0.7mm	FA-238	48.000000 MHz	16 pF	+/-50 ppm
Q22FA23800141	3.2 x 2.5 x 0.7mm	FA-238	32.000000 MHz	10 pF	+/-50 ppm
Q22FA23800146	3.2 x 2.5 x 0.7mm	FA-238	26.000000 MHz	10 pF	+/-50 ppm
Q22FA23800147	3.2 x 2.5 x 0.7mm	FA-238	26.000000 MHz	20 pF	+/-50 ppm
