亚陶晶振YD系列超低抖动压控晶体振荡器,YNETHE125

来源：http://www.ftklrm.cn 作者：康比电子 2022年07月13
我们的振荡器是低抖动、高度稳定的晶体振荡器模块，将成熟的石英晶体谐振器技术与领先的时钟 IC 技术相结合。我们的电压控制振荡器提供 CMOS/TTL、LVPECL或LVDS输出逻辑，可为各种应用（包括 WiFi、WiMax、PON 和 SONET/SDH 等电信标准）实现非常严格的 ±20 ppm 整体精度。此外，一些振荡器产品还具有电压控制功能，可以在线调整输出频率，用于数据信号采集、时钟重定时和抖动衰减或频率合成。

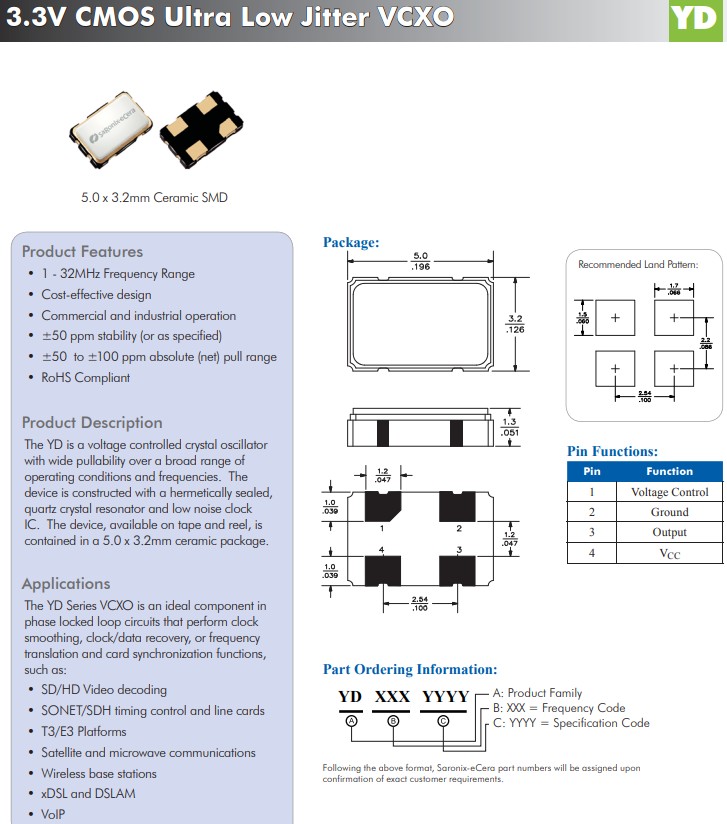

亚陶晶振YD系列是一种压控晶体振荡器，在广泛的工作条件和频率范围内具有广泛的可拉性。该器件由密封的石英晶体谐振器和低噪声时钟IC构成。该器件采用卷带包装，小体积晶振采用5.0x3.2mm陶瓷封装。YD系列超低抖动VCXO是执行时钟平滑、时钟/数据恢复或频率转换和卡同步功能的锁相环电路中的理想组件。
亚陶晶振YD系列超低抖动压控晶体振荡器,YNETHE125,YD16.0005032,压控晶体振荡器,ECERA低抖动晶振
FD6250011 Diodes Incorporated SaRonix-eCera™ FD 62.5MHz ±50ppm
FD6400006 Diodes Incorporated SaRonix-eCera™ FD 64MHz ±50ppm
FD6400007 Diodes Incorporated SaRonix-eCera™ FD 64MHz ±25ppm
FD6400008 Diodes Incorporated SaRonix-eCera™ FD 64MHz ±50ppm
FD6600015 Diodes Incorporated SaRonix-eCera™ FD 66MHz ±25ppm
FD6600016 Diodes Incorporated SaRonix-eCera™ FD 66MHz ±50ppm
FD6600017 Diodes Incorporated SaRonix-eCera™ FD 66MHz ±50ppm
FD6660016 Diodes Incorporated SaRonix-eCera™ FD 66.666MHz ±50ppm
FD6660017 Diodes Incorporated SaRonix-eCera™ FD 66.666MHz ±25ppm
FD6660018 Diodes Incorporated SaRonix-eCera™ FD 66.666MHz ±50ppm
FD6660019 Diodes Incorporated SaRonix-eCera™ FD 66.6667MHz ±50ppm
FD6660020 Diodes Incorporated SaRonix-eCera™ FD 66.6667MHz ±25ppm
FD6660021 Diodes Incorporated SaRonix-eCera™ FD 66.6667MHz ±50ppm
FD6660024 Diodes Incorporated SaRonix-eCera™ FD 66.667MHz ±25ppm
FD6800001 Diodes Incorporated SaRonix-eCera™ FD 68MHz ±50ppm
FD7420006 Diodes Incorporated SaRonix-eCera™ FD 74.25MHz ±25ppm
FD7500010 Diodes Incorporated SaRonix-eCera™ FD 75MHz ±50ppm
FD7500011 Diodes Incorporated SaRonix-eCera™ FD 75MHz ±25ppm
FD7500013 Diodes Incorporated SaRonix-eCera™ FD 75MHz ±50ppm
FD7770004 Diodes Incorporated SaRonix-eCera™ FD 77.76MHz ±50ppm
FD7770005 Diodes Incorporated SaRonix-eCera™ FD 77.76MHz ±25ppm
FD7770006 Diodes Incorporated SaRonix-eCera™ FD 77.76MHz ±50ppm
FD7770007 Diodes Incorporated SaRonix-eCera™ FD 77.76MHz ±50ppm
FD7770008 Diodes Incorporated SaRonix-eCera™ FD 77.76MHz ±25ppm
FD7770009 Diodes Incorporated SaRonix-eCera™ FD 77.76MHz ±50ppm
亚陶晶振YD系列超低抖动压控晶体振荡器,YNETHE125,YD16.0005032,压控晶体振荡器,ECERA低抖动晶振
特征：
频率范围：1至32MHz 有源晶振
高性价比的设计
商业和工业运营
±50 ppm 稳定性（或按规定）
±50 至 ±100 ppm 绝对（净）牵引范围
符合 RoHS 标准
应用：
标清/高清视频解码
SONET/SDH 时序控制和线卡
T3/E3 平台
卫星和微波通信
无线基站
xDSL 和 DSLAM
网络电话
FDC500014 Diodes Incorporated SaRonix-eCera™ FD 125MHz ±50ppm
FK0100001 Diodes Incorporated SaRonix-eCera™ FK 1MHz ±50ppm
FK0100002 Diodes Incorporated SaRonix-eCera™ FK 1MHz ±50ppm
FK0180004 Diodes Incorporated SaRonix-eCera™ FK 1.843MHz ±50ppm
FK0180005 Diodes Incorporated SaRonix-eCera™ FK 1.843MHz ±25ppm
FK0180006 Diodes Incorporated SaRonix-eCera™ FK 1.843MHz ±50ppm
FK0200002 Diodes Incorporated SaRonix-eCera™ FK 2MHz ±50ppm
FK0360002 Diodes Incorporated SaRonix-eCera™ FK 3.686MHz ±50ppm
FK0360003 Diodes Incorporated SaRonix-eCera™ FK 3.686MHz ±25ppm
FK0360004 Diodes Incorporated SaRonix-eCera™ FK 3.686MHz ±50ppm
FK0400005 Diodes Incorporated SaRonix-eCera™ FK 4MHz ±25ppm
FK0400007 Diodes Incorporated SaRonix-eCera™ FK 4MHz ±50ppm
FK0500002 Diodes Incorporated SaRonix-eCera™ FK 5MHz ±50ppm
FK0530001 Diodes Incorporated SaRonix-eCera™ FK 5.33MHz ±50ppm
FK0610001 Diodes Incorporated SaRonix-eCera™ FK 6.14MHz ±25ppm
FK0670001 Diodes Incorporated SaRonix-eCera™ FK 6.758MHz ±25ppm
FK0800004 Diodes Incorporated SaRonix-eCera™ FK 8MHz ±50ppm
FK0810001 Diodes Incorporated SaRonix-eCera™ FK 8.192MHz ±50ppm
FK0810002 Diodes Incorporated SaRonix-eCera™ FK 8.192MHz ±25ppm
FK0810003 Diodes Incorporated SaRonix-eCera™ FK 8.192MHz ±50ppm
FK1000006 Diodes Incorporated SaRonix-eCera™ FK 10MHz ±50ppm
FK1000007 Diodes Incorporated SaRonix-eCera™ FK 10MHz ±25ppm
FK1000008 Diodes Incorporated SaRonix-eCera™ FK 10MHz ±50ppm
FK1200010 Diodes Incorporated SaRonix-eCera™ FK 12MHz ±50ppm
FK1200013 Diodes Incorporated SaRonix-eCera™ FK 12MHz ±25ppm


FK1220006 Diodes Incorporated SaRonix-eCera™ FK 12.288MHz ±25ppm
FK1220007 Diodes Incorporated SaRonix-eCera™ FK 12.288MHz ±50ppm
FK1220008 Diodes Incorporated SaRonix-eCera™ FK 12.288MHz ±25ppm
FK1220009 Diodes Incorporated SaRonix-eCera™ FK 12.288MHz ±50ppm
FK1300008 Diodes Incorporated SaRonix-eCera™ FK 13MHz ±50ppm
FK1300010 Diodes Incorporated SaRonix-eCera™ FK 13MHz ±50ppm
FK1430004 Diodes Incorporated SaRonix-eCera™ FK 14.318MHz ±50ppm
FK1600003 Diodes Incorporated SaRonix-eCera™ FK 16MHz ±25ppm
FK1600004 Diodes Incorporated SaRonix-eCera™ FK 16MHz ±50ppm
FK1600005 Diodes Incorporated SaRonix-eCera™ FK 16MHz ±50ppm
FK1630003 Diodes Incorporated SaRonix-eCera™ FK 16.384MHz ±50ppm
FK1630004 Diodes Incorporated SaRonix-eCera™ FK 16.384MHz ±25ppm
FK1630005 Diodes Incorporated SaRonix-eCera™ FK 16.384MHz ±50ppm
FK1840001 Diodes Incorporated SaRonix-eCera™ FK 18.432MHz ±50ppm
FK1840002 Diodes Incorporated SaRonix-eCera™ FK 18.432MHz ±25ppm
FK1840003 Diodes Incorporated SaRonix-eCera™ FK 18.432MHz ±50ppm
FK1940001 Diodes Incorporated SaRonix-eCera™ FK 19.44MHz ±50ppm
FK1940002 Diodes Incorporated SaRonix-eCera™ FK 19.44MHz ±25ppm
FK1940004 Diodes Incorporated SaRonix-eCera™ FK 19.44MHz ±50ppm
FK2000022 Diodes Incorporated SaRonix-eCera™ FK 20MHz ±50ppm
FK2000023 Diodes Incorporated SaRonix-eCera™ FK 20MHz ±25ppm
FK2000025 Diodes Incorporated SaRonix-eCera™ FK 20MHz ±50ppm
FK2400012 Diodes Incorporated SaRonix-eCera™ FK 24MHz ±50ppm
FK2400013 Diodes Incorporated SaRonix-eCera™ FK 24MHz ±25ppm
FK2400014 Diodes Incorporated SaRonix-eCera™ FK 24MHz ±50ppm

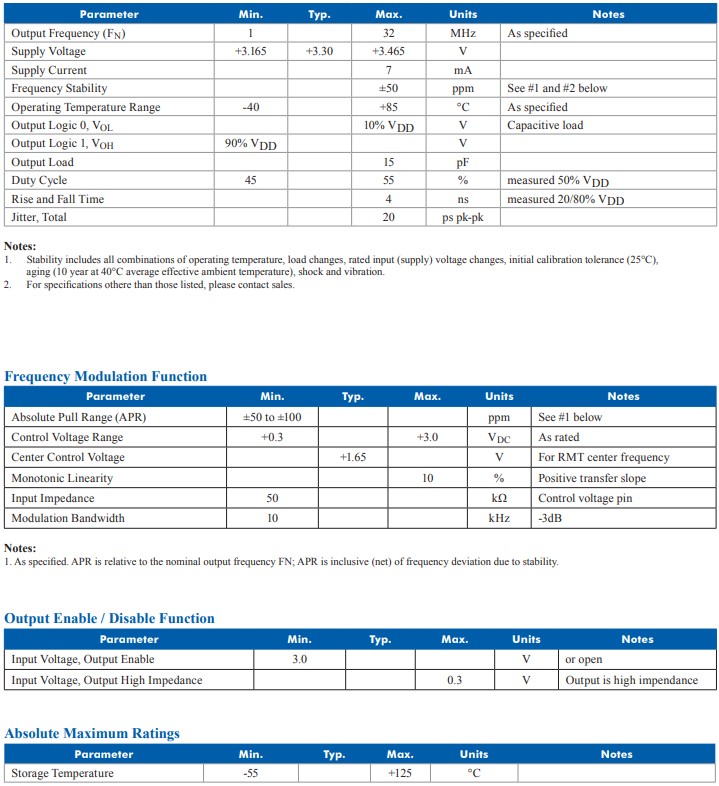

Product Parameters

ProductSeries YD_3
Family VCXO
Legacy PN None
Output Logic CMOS
SupplyVoltage 3.3
PullRange 50 to 100 ppm
Freq Range (MHz) 1 to 66
Jitter RMS (ps) <2 ps RMS
Package Type Ceramic Seam
Package Size (mm) 5.0 x 3.2 x 1.3
Pads 4
NotRecommended 0
亚陶晶振YD系列超低抖动压控晶体振荡器,YNETHE125,YD16.0005032,压控晶体振荡器,ECERA低抖动晶振
产品参数：
产品系列 YD_3
家庭 VCXO压控振荡器
旧版 PN 没有任何
输出逻辑 CMOS
电源电压 3.3
拉距 50 至 100 ppm
频率范围 (MHz) 1 至 66
抖动均方根 (ps) <2 ps RMS
包装类型 陶瓷缝
包装尺寸 5.0x3.2x1.3mm
垫 4脚
不建议 0
FK2450008 Diodes Incorporated SaRonix-eCera™ FK 24.576MHz ±50ppm
FK2450009 Diodes Incorporated SaRonix-eCera™ FK 24.576MHz ±25ppm
FK2450010 Diodes Incorporated SaRonix-eCera™ FK 24.576MHz ±50ppm
FK2500018 Diodes Incorporated SaRonix-eCera™ FK 25MHz ±50ppm
FK2500019 Diodes Incorporated SaRonix-eCera™ FK 25MHz ±25ppm
FK2500026 Diodes Incorporated SaRonix-eCera™ FK 25MHz ±50ppm
FK2600016 Diodes Incorporated SaRonix-eCera™ FK 26MHz ±50ppm
FK2600017 Diodes Incorporated SaRonix-eCera™ FK 26MHz ±25ppm
FK2600019 Diodes Incorporated SaRonix-eCera™ FK 26MHz ±50ppm
FK2600020 Diodes Incorporated SaRonix-eCera™ FK 26MHz ±25ppm
FK2600024 Diodes Incorporated SaRonix-eCera™ FK 26MHz ±50ppm
FK2600027 Diodes Incorporated SaRonix-eCera™ FK 26MHz ±20ppm
FK2600028 Diodes Incorporated SaRonix-eCera™ FK 26MHz ±50ppm
FK2700001 Diodes Incorporated SaRonix-eCera™ FK 27MHz ±25ppm
FK2700015 Diodes Incorporated SaRonix-eCera™ FK 27MHz ±50ppm
FK2700016 Diodes Incorporated SaRonix-eCera™ FK 27MHz ±25ppm
FK2700017 Diodes Incorporated SaRonix-eCera™ FK 27MHz ±20ppm
FK2700018 Diodes Incorporated SaRonix-eCera™ FK 27MHz ±50ppm
FK2700021 Diodes Incorporated SaRonix-eCera™ FK 27MHz ±50ppm
FK2820001 Diodes Incorporated SaRonix-eCera™ FK 28.224MHz ±25ppm
FK3000001 Diodes Incorporated SaRonix-eCera™ FK 30MHz ±50ppm
FK3000003 Diodes Incorporated SaRonix-eCera™ FK 30MHz ±25ppm
FK3000004 Diodes Incorporated SaRonix-eCera™ FK 30MHz ±50ppm
FK3000005 Diodes Incorporated SaRonix-eCera™ FK 30MHz ±50ppm
FK3000006 Diodes Incorporated SaRonix-eCera™ FK 30MHz ±50ppm
亚陶晶振YD系列超低抖动压控晶体振荡器,YNETHE125,YD16.0005032,压控晶体振荡器,ECERA低抖动晶振
YD 3.3V None CMOS 1 to 66 <2 ps RMS Ceramic Seam 5.0x3.2x1.3 4 超低抖动晶振
YJ 3.3V None CMOS 1 to 52 <2 ps RMS Ceramic Seam 2.5x2.0x0.9 4 超低抖动
YK 3.3V None CMOS 1 to 66 <2 ps RMS Ceramic Seam 3.2x2.5 x1.0 4 超低抖动
YN 3.3V ST1307 CMOS 66 to 166 <2 ps RMS Ceramic Seam 7.0x5.0x2.0 6 PLL Base, 相位抖动 > 1ps
